Customized Gearbox Telemetry
Customized Transmission Telemetry

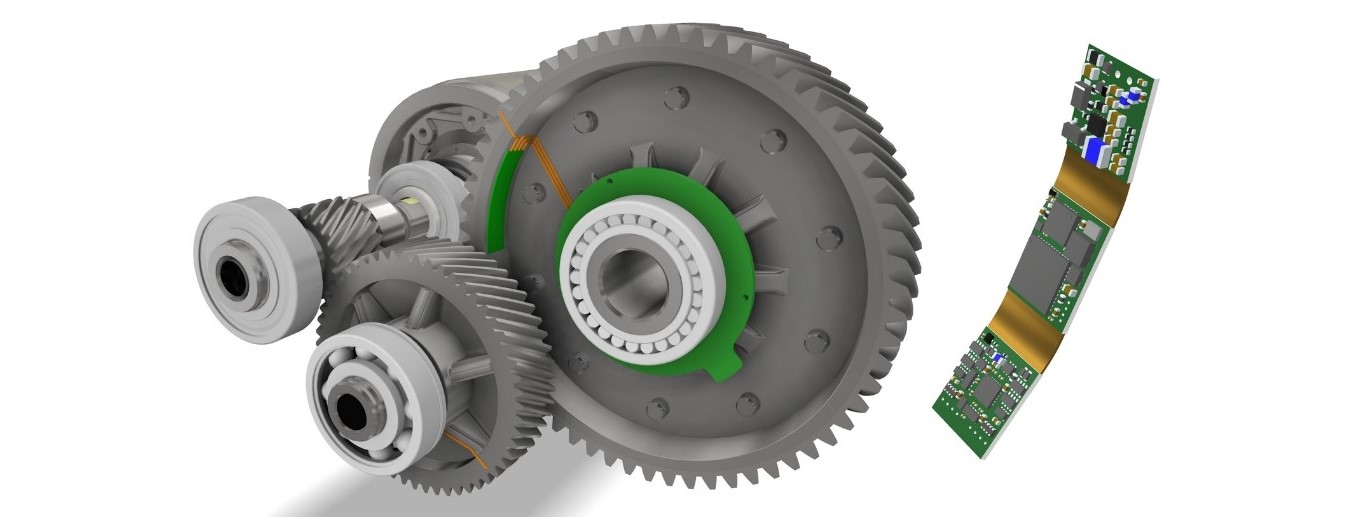

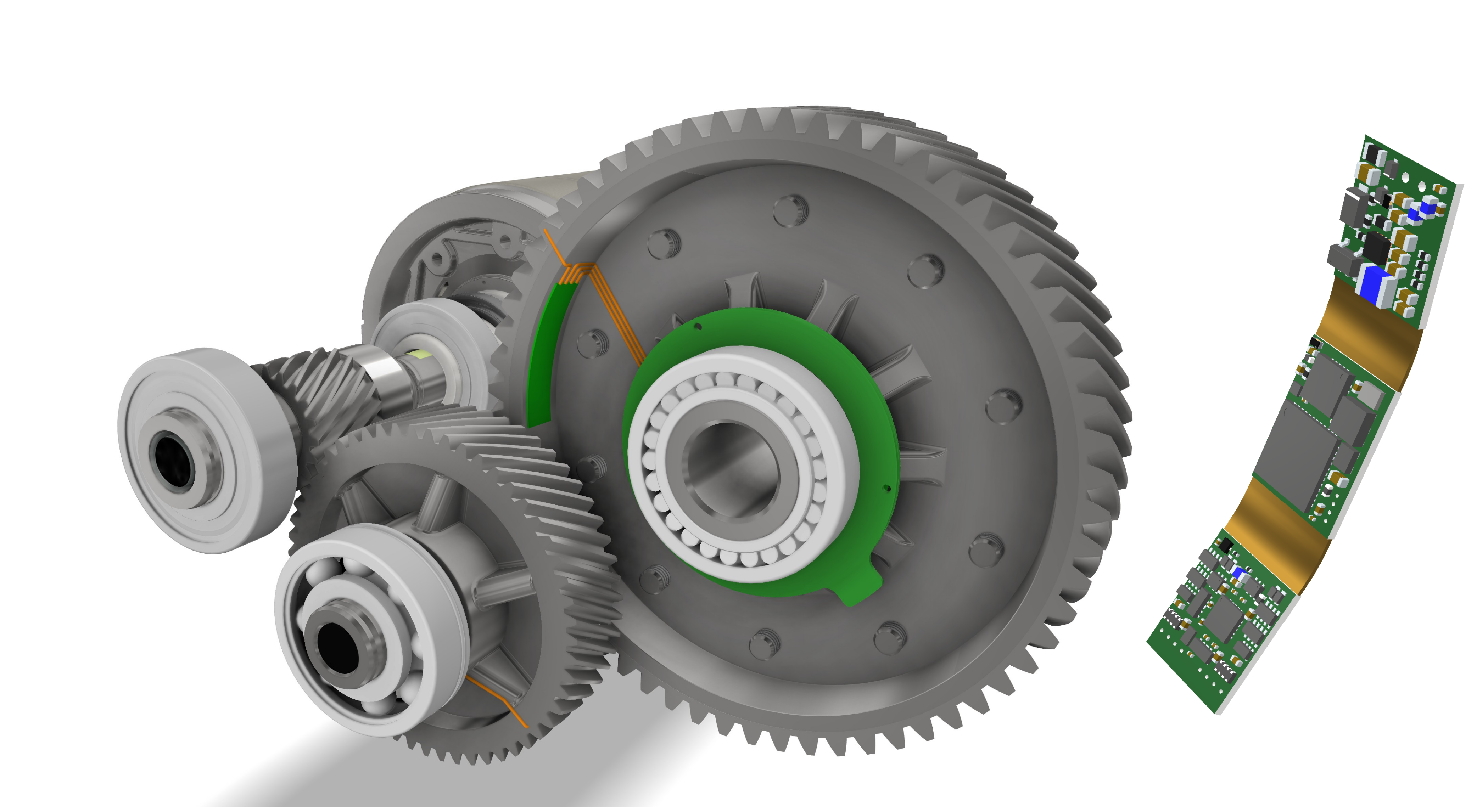

Our customized Gearbox Telemetry Systems enable precise measurement of temperatures in gearboxes, providing critical data for performance analysis and development. Designed for minimal invasiveness, the system integrates seamlessly into rotating components without compromising functionality.
Capabilities
Capabilities
Minimally Invasive Temperature Monitoring

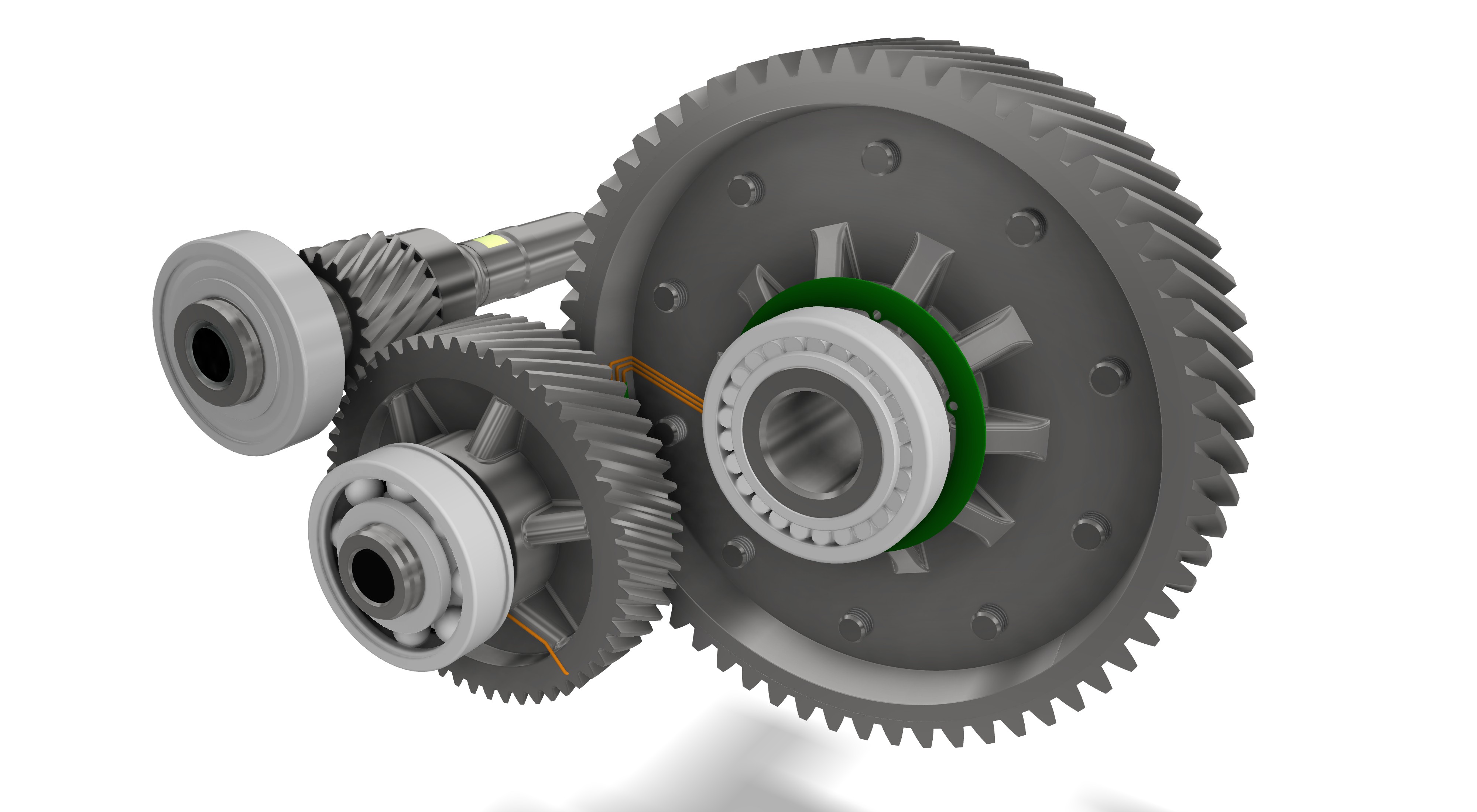

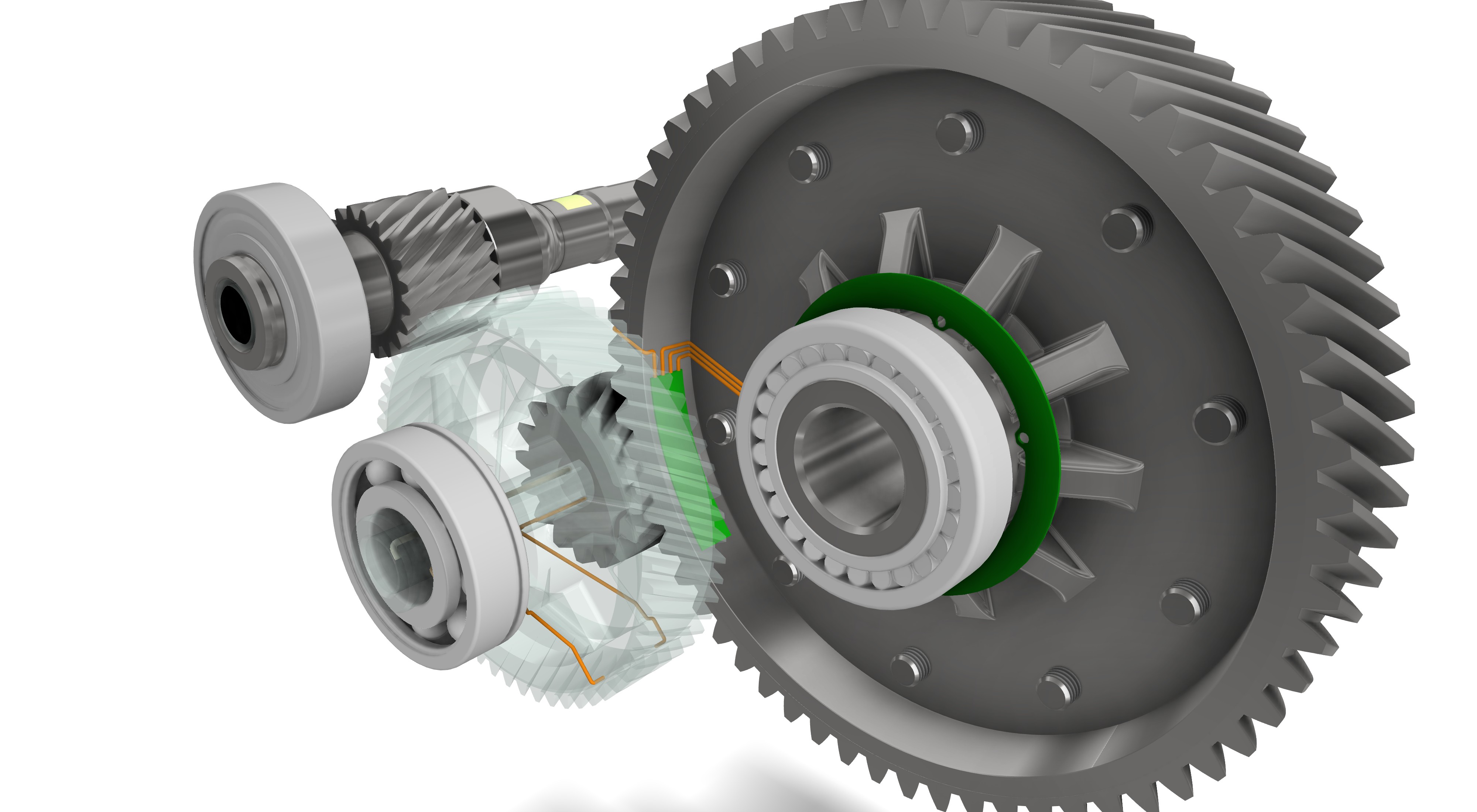

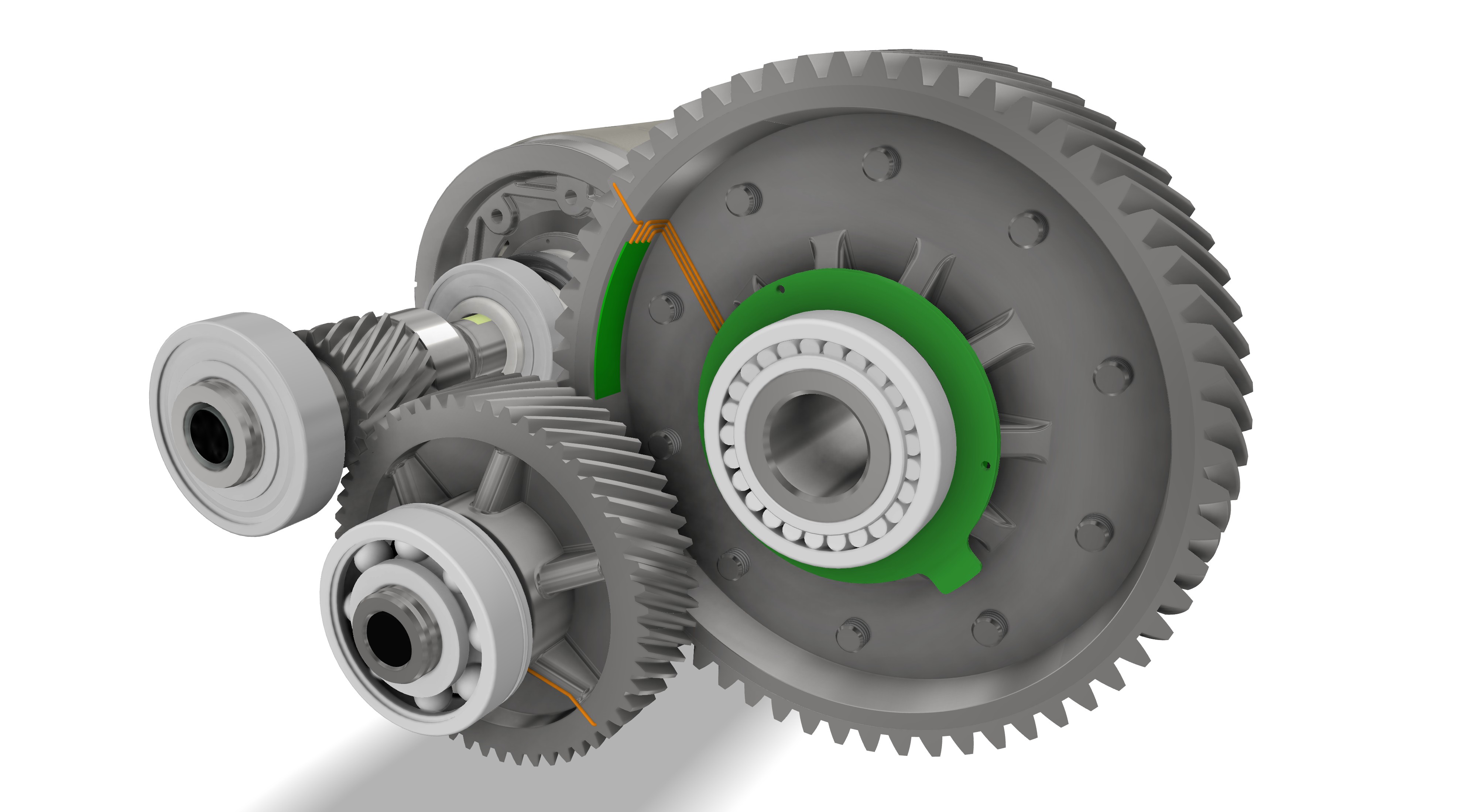

Accurately capture temperatures on rotating shafts, tooth flanks, bearings, and shaft seals within the gearbox. This detailed data offers clear insights into the thermal behavior of the drive system.
Customizable Design
Our telemetry systems conform to any gearbox configuration, ensuring compatibility and ease of integration.
Data-Driven Efficiency
Identify sources of heat loss for targeted improvements in efficiency and overall vehicle performance.
Discover the power of precision temperature monitoring. Contact us today to learn how our Gearbox Telemetry Systems can aid your development process.
Specifications
Specifications
Number of inputs | 4 |
Supported sensors | Thermocouples of all types |
Sampling rate | 10 Hz |
Operating temperature range (electronics) | -40 °F to 302 °F |
Accuracy | ±2,7 °F |
Telemetry communication interface | digital, contactless |
Power supply | wireless power transfer (WPT) |
Data interface | CAN Bus through Receiverbox |
Allowed rotational speed | Tested up to 30.000 RPM |
Achievable airgaps (antenna separation) | 1 mm to 20 mm |
Antenna configuration | specific to customer geometry |
Components
Components
Receiverbox
Our universal Receiverbox serves as the central communication hub for any telemetry system, delivering both wireless power to the telemetry and a high-speed data interface in one compact device.
Telemetry data is received, processed, and then transmitted via a standard CAN bus interface, ensuring compatibility with a wide range of systems and applications. For added convenience, real-time data monitoring is available directly on the built-in device display, allowing for immediate feedback and system diagnostics without the need for external tools.
